Wheel alignment machines play an important role in modern automotive maintenance and vehicle performance evaluation.
These systems help technicians measure wheel angles and determine whether a vehicle's wheels are positioned according to manufacturer specifications.
Proper wheel alignment contributes to stable handling, predictable steering response, and even tire wear. As automotive technology continues to advance, wheel alignment machines have evolved from simple mechanical tools into highly accurate computerized systems capable of analyzing multiple vehicle parameters in real time.
From passenger vehicles and commercial fleets to performance vehicles and heavy-duty transportation equipment, wheel alignment technology supports safe and efficient vehicle operation.
Quick Facts About Wheel Alignment Machines
| Feature | Description |
|---|---|
| Primary Function | Measures wheel alignment angles |
| Technology Type | Computerized measurement system |
| Common Applications | Passenger and commercial vehicles |
| Measurement Method | Sensors, cameras, and targets |
| Accuracy Level | High precision |
| Calibration Requirement | Periodic verification |
| Industry Usage | Automotive workshops and fleet facilities |
| Key Benefit | Improved alignment accuracy |

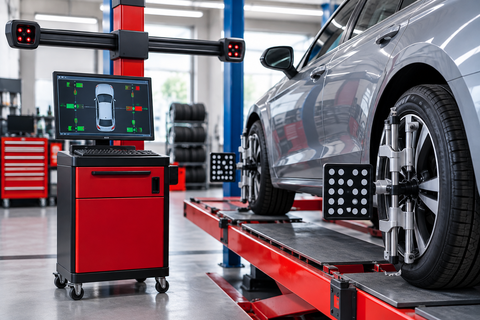

What Is a Wheel Alignment Machine?
A wheel alignment machine is a diagnostic system designed to measure wheel positioning and suspension geometry. It evaluates important angles such as toe, camber, caster, thrust angle, and steering axis inclination.
These measurements help determine whether vehicle wheels are aligned according to manufacturer specifications. Modern systems use digital sensors, cameras, lasers, and advanced software to produce highly accurate alignment data.
Wheel alignment machines are widely used in automotive maintenance facilities, tire centers, fleet operations, vehicle inspection centers, and educational automotive programs.
Understanding Wheel Alignment
Wheel alignment refers to the geometric relationship between the wheels, suspension components, and road surface.
When alignment angles move outside recommended specifications, vehicles may experience:
- Uneven tire wear
- Steering pull
- Reduced handling stability
- Increased rolling resistance
- Driver comfort issues
Accurate alignment measurements help identify these conditions before they become significant problems.
Key Wheel Alignment Angles
Toe
Toe describes whether the front edges of the wheels point inward or outward when viewed from above.
| Toe Condition | Description |
|---|---|
| Toe-In | Front edges point toward each other |
| Toe-Out | Front edges point away from each other |
| Neutral Toe | Wheels remain parallel |
Camber
Camber measures wheel tilt when viewed from the front of the vehicle.
| Camber Type | Description |
|---|---|
| Positive Camber | Top of wheel tilts outward |
| Negative Camber | Top of wheel tilts inward |
| Neutral Camber | Wheel remains vertical |
Caster
Caster measures steering pivot angle when viewed from the side.
Positive caster typically supports directional stability and steering return.
Thrust Angle
Thrust angle indicates whether rear wheels are aligned with the vehicle centerline.
Steering Axis Inclination
This measurement helps evaluate suspension geometry and steering system condition.
Wheel Alignment Machine Architecture
Modern wheel alignment machines consist of multiple integrated subsystems.
Imaging System
High-resolution cameras capture target positions attached to vehicle wheels.
Sensor System
Electronic sensors detect wheel movement and positioning.
Alignment Targets
Targets provide reference points used during measurements.
Processing Unit
The computer processes measurement data and calculates alignment angles.
Display Interface
Technicians review alignment readings through graphical displays.
Calibration System
Calibration tools verify measurement accuracy and maintain system performance.
Main Components
| Component | Function |
|---|---|
| Cameras | Capture wheel target data |
| Alignment Targets | Provide reference measurements |
| Computer System | Processes alignment information |
| Turntables | Allow wheel movement during testing |
| Wheel Clamps | Secure targets to wheels |
| Sensors | Detect positioning changes |
| Display Monitor | Shows measurement results |
| Calibration Tools | Verify system accuracy |
Types of Wheel Alignment Machines
3D Wheel Alignment Machines
These systems use cameras and targets to create three-dimensional measurements.
Advantages
- High measurement accuracy
- Fast operation
- Comprehensive reporting
- Digital data processing
CCD Alignment Machines
CCD systems use electronic sensors and infrared communication.
Advantages
- Reliable measurements
- Established technology
- Consistent performance
Laser Alignment Machines
Laser systems use projected beams to evaluate wheel positioning.
Advantages
- Simple measurement approach
- Suitable for specific applications
Heavy-Duty Alignment Systems
Designed for commercial trucks, buses, and industrial vehicles.
Advantages
- Larger vehicle compatibility
- Fleet maintenance applications
Wheel Alignment Technology Comparison
| Technology | Accuracy | Vehicle Coverage | Processing Speed |
|---|---|---|---|
| 3D Alignment | Very High | Extensive | Fast |
| CCD Alignment | High | Broad | Moderate |
| Laser Alignment | Moderate | Specific Applications | Moderate |
| Heavy-Duty Systems | High | Commercial Vehicles | Fast |
How Wheel Alignment Machines Work
Step 1: Vehicle Positioning
The vehicle is placed on an alignment rack.
Step 2: Target Installation
Alignment targets or sensors are attached to wheels.
Step 3: System Recognition
The machine identifies vehicle specifications.
Step 4: Measurement Collection
Cameras and sensors capture wheel positions.
Step 5: Data Processing
The system calculates alignment angles.
Step 6: Diagnostic Report
Results are displayed and compared with manufacturer specifications.
Calibration Process Explained
Calibration ensures measurement accuracy and system reliability.
Why Calibration Matters
Accurate calibration helps prevent incorrect alignment readings.
Benefits include:
- Reliable measurements
- Consistent reporting
- Improved diagnostic confidence
- Reduced measurement errors
Calibration Workflow
| Calibration Step | Purpose |
|---|---|
| Equipment Inspection | Verify component condition |
| Target Verification | Check target accuracy |
| Camera Alignment | Confirm positioning |
| Sensor Testing | Verify measurement capability |
| Software Validation | Ensure correct calculations |
| Final Verification | Confirm overall accuracy |
Technical Specifications Explained
Measurement Accuracy
Modern systems provide highly precise angle measurements.
Camera Resolution
Higher resolution improves target detection.
Database Coverage
Vehicle databases support numerous manufacturers and models.
Processing Speed
Fast processors reduce measurement time.
Communication Interface
Systems support network connectivity and reporting functions.
Typical Measurement Parameters
| Parameter | Purpose |
|---|---|
| Toe | Wheel direction measurement |
| Camber | Wheel tilt measurement |
| Caster | Steering geometry |
| Thrust Angle | Vehicle tracking |
| Setback | Wheel positioning |
| Ride Height | Suspension evaluation |
| Steering Axis Inclination | Geometry analysis |
Benefits and Advantages
Improved Diagnostic Accuracy
Digital measurement systems provide detailed alignment data.
Faster Inspection Process
Automated calculations improve efficiency.
Enhanced Vehicle Performance Analysis
Comprehensive measurements support maintenance decisions.
Consistent Reporting
Computer-generated reports improve documentation.
Fleet Maintenance Support
Fleet operators can monitor vehicle alignment conditions efficiently.
Real-World Applications
Automotive Workshops
Routine alignment inspections and corrections.
Tire Centers
Alignment verification during tire maintenance.
Fleet Management
Commercial vehicle maintenance programs.
Vehicle Inspection Facilities
Mechanical condition assessments.
Automotive Education
Training future automotive technicians.
Industry Applications Table
| Industry | Application |
|---|---|
| Automotive Repair | Wheel alignment inspection |
| Tire Maintenance | Tire wear analysis |
| Fleet Operations | Preventive maintenance |
| Commercial Transport | Vehicle performance monitoring |
| Education | Technical training |
| Inspection Centers | Vehicle assessments |
Calibration Best Practices
Maintain Clean Targets
Dirt or damage can affect measurements.
Inspect Cameras Regularly
Clear imaging supports accurate readings.
Follow Calibration Schedules
Routine verification improves reliability.
Update Vehicle Databases
Current specifications support accurate analysis.
Verify Rack Condition
Alignment racks should remain level and stable.
Common Challenges and Solutions
| Challenge | Solution |
|---|---|
| Target Damage | Replace damaged components |
| Camera Obstruction | Clean camera lenses |
| Incorrect Vehicle Selection | Verify vehicle information |
| Sensor Drift | Perform recalibration |
| Rack Level Issues | Inspect equipment setup |
| Database Gaps | Update software systems |
Environmental Considerations
Modern wheel alignment systems support maintenance practices that can contribute to vehicle efficiency.
Tire Wear Management
Proper alignment may help promote more even tire wear.
Reduced Resource Consumption
Well-maintained tires generally support longer operational life.
Digital Reporting
Electronic reports reduce paper documentation requirements.
Equipment Longevity
Routine maintenance helps extend equipment lifespan.
Industry Standards and Safety
Equipment Verification
Regular inspection supports measurement reliability.
Electrical Safety
Systems should comply with applicable electrical requirements.
Workshop Safety
Technicians should follow established operating procedures.
Equipment Maintenance
Routine maintenance helps maintain safe operation.
Calibration Compliance
Scheduled calibration supports measurement consistency.
Maintenance Schedule
| Maintenance Task | Frequency |
|---|---|
| Clean Cameras | Weekly |
| Inspect Targets | Weekly |
| Verify Calibration | Monthly |
| Update Software | Periodically |
| Check Rack Level | Monthly |
| Inspect Wheel Clamps | Monthly |
| Review Database Updates | Periodically |
Expert Insights
Automotive alignment specialists often emphasize that calibration quality is just as important as the alignment machine itself. Even highly advanced systems depend on properly calibrated cameras, sensors, and targets to deliver reliable measurements.
Many modern 3D alignment systems provide rapid measurements, but consistent maintenance, regular calibration checks, and updated vehicle databases remain critical factors in achieving accurate diagnostic results.
Key Facts About Wheel Alignment Machines
- Digital alignment systems use cameras and sensors for measurements.
- Calibration helps maintain accuracy and consistency.
- Alignment machines evaluate multiple wheel geometry angles.
- Modern systems support extensive vehicle databases.
- 3D alignment technology is widely used in contemporary workshops.
Future Trends and Industry Insights
AI-Assisted Diagnostics
Advanced systems may help identify alignment issues automatically.
Cloud-Based Reporting
Data sharing and storage capabilities continue to expand.
Smart Workshop Integration
Alignment systems increasingly connect with digital workshop platforms.
Enhanced Imaging Technology
Higher-resolution cameras continue improving measurement precision.
Predictive Maintenance Analytics
Future systems may support maintenance planning through historical data analysis.
Frequently Asked Questions
What is a wheel alignment machine?
A diagnostic system used to measure wheel and suspension geometry.
Why is calibration important?
Calibration helps ensure measurement accuracy and consistency.
What does toe measurement indicate?
It measures wheel direction relative to the vehicle centerline.
What is camber?
Camber measures wheel tilt when viewed from the front.
What is caster?
Caster measures steering pivot angle from the side view.
What technology do modern alignment machines use?
Many systems use 3D cameras, sensors, and computerized processing.
How often should calibration be checked?
Calibration schedules vary by equipment usage and manufacturer recommendations.
What industries use wheel alignment machines?
Automotive repair, fleet maintenance, tire centers, vehicle inspection, and technical education.
Why are vehicle databases important?
They provide manufacturer specifications for accurate comparisons.
What future developments are expected?
AI-assisted diagnostics, cloud reporting, and enhanced imaging technologies.
Conclusion
Wheel alignment machines are essential diagnostic tools in modern automotive maintenance. Their ability to measure critical suspension and wheel geometry angles helps support accurate vehicle assessments, tire performance monitoring, and maintenance planning.
As technology continues to evolve, advancements in imaging systems, automation, data analytics, and calibration methods are expected to further improve measurement accuracy and workshop efficiency. Proper calibration, routine maintenance, and adherence to best practices remain fundamental to achieving reliable wheel alignment results.
